THE ADVANTEGES OF OUR TANKS:
In the course of fabrication of horizontal steel tanks we are oriented on the most demanding and intelligent customers. Three basic goals are set for our production to make the work effective: competitive price of the finished tank, ideal and stable quality, the shortest period of production.
These goals are achieved due to well-reasoned technology of shop-welded storage tanks fabrication and the modern welding equipment.
Automatic and auto-manual welding equipment Lincoln Electric is used in our production. The welding facilities of such level enable us to provide an excellent quality of welding joints along with the decrease in the time of fabrication and labour expenses.
The welding facility of our production line has a number of advantages:
The frameworks of sheet metal-roll, among which are the horizontal tanks, are assembled with the use of automatic welding, which is featured by avoiding contraction, ensuring throat-welding without burn-through and a sufficient decrease of the post-welding procedures period.
Modern welding equipment provides the managed penetration and heat input.
Low sputter level and the minimal welding blow-out are achieved due to the automatic adjustment of the welding current and optimization of the metal transfer process.
High-speed welding does not affect the quality and the view of the welding joint.
Regulated background and the trailing edge enable to set the exact volume of heat input, to decrease the probability of burn-through as well as to ensure the needed penetration.
In the course of fabrication of horizontal steel tanks we are oriented on the most demanding and intelligent customers. Three basic goals are set for our production to make the work effective: competitive price of the finished tank, ideal and stable quality, the shortest period of production.
These goals are achieved due to well-reasoned technology of shop-welded storage tanks fabrication and the modern welding equipment.
Automatic and auto-manual welding equipment Lincoln Electric is used in our production. The welding facilities of such level enable us to provide an excellent quality of welding joints along with the decrease in the time of fabrication and labour expenses.
The welding facility of our production line has a number of advantages:
The frameworks of sheet metal-roll, among which are the horizontal tanks, are assembled with the use of automatic welding, which is featured by avoiding contraction, ensuring throat-welding without burn-through and a sufficient decrease of the post-welding procedures period.
Modern welding equipment provides the managed penetration and heat input.
Low sputter level and the minimal welding blow-out are achieved due to the automatic adjustment of the welding current and optimization of the metal transfer process.
High-speed welding does not affect the quality and the view of the welding joint.
Regulated background and the trailing edge enable to set the exact volume of heat input, to decrease the probability of burn-through as well as to ensure the needed penetration.
TECHNOLOGICAL PROCESS OF HORIZONTAL TANKS FABRICATION
- Initial check (incoming test);
- Metal preparation;
- Manufacturing of the wall;
- Manufacturing of the endwalls, manway plates and pipe junctions;
- Backing holders and maintenance shaft production;

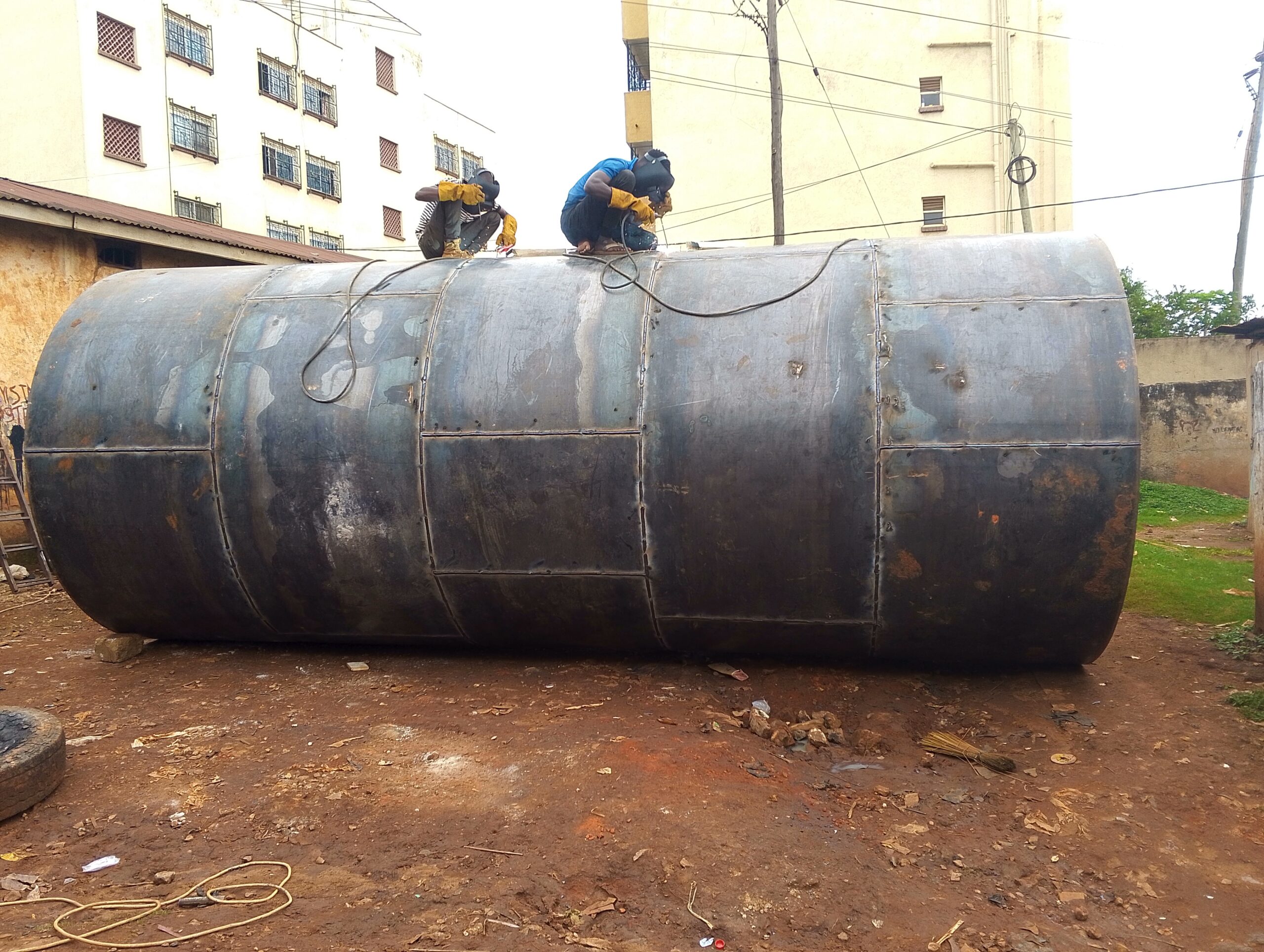

- Tank assembling;
- Corrosion preventive procedures
To ensure the effective use of the horizontal tank, the pre-production stage demands special attention to the choice of steel type. As a rule, steel of st3sp, 09G2S is used in our production, along with stainless steel types AISI304 and AISI321 of 4 to 10 mm thickness.

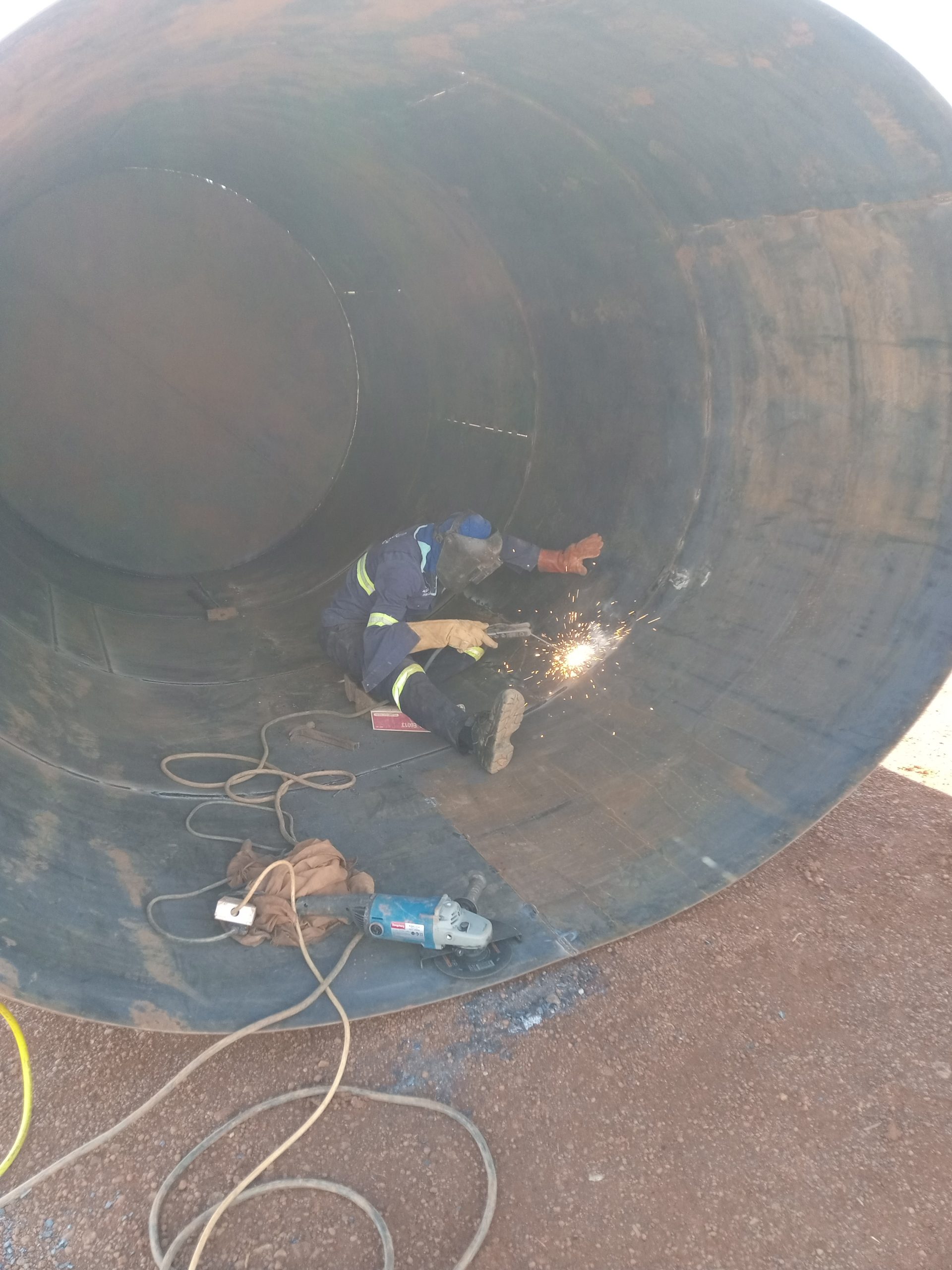

The tank wall is a set of several shells, made of roll or steel plate (1500 mm wide).The firmness of the framework is provided by the supportive (with triangle diaphragm plate) and midpoint (interim) stiffening-rings. The rigidity of the tank wall in the course of transportation, re-load and installation is ensured by the horizontal stiffening-rings made of standard section and toe-welded to the wall. Such scheme provides the rigidity of walls, exposed to vacuum and wind influence.
The bottom of the horizontal tank is flat, manufactured with the excessive pressure up to 40 kPa. The pressure level from 40 kPa to 70 kPa requires the conical shaped bottoms. To ensure the framework firmness flat bottoms are often reinforced by the stiffening plates.

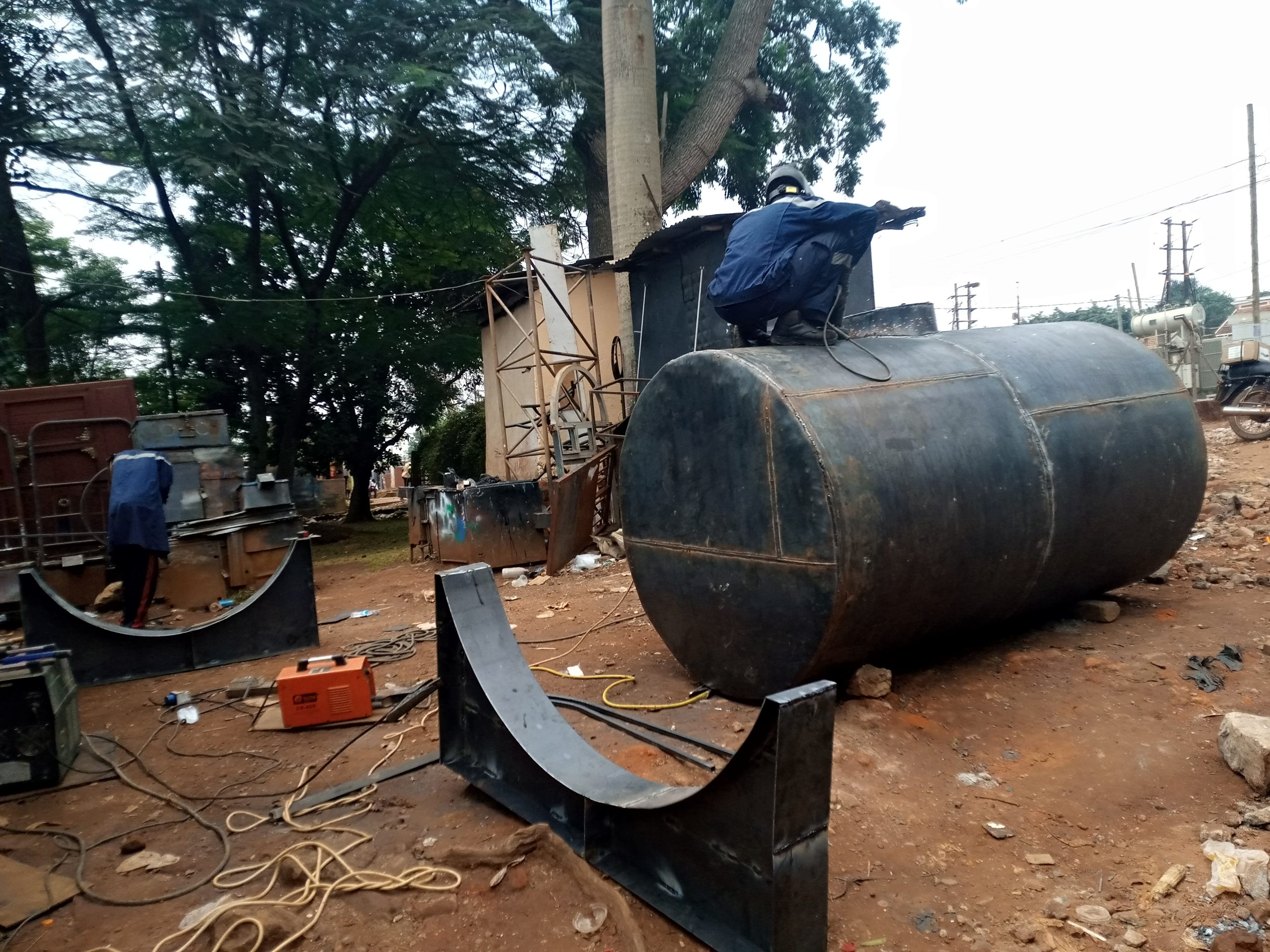

The framework of the ground-level horizontal tanks includes two supporting structures: saddle shaped or poles. The angle of contact of the saddle-shaped structure is 60-120°.
The framework of underground horizontal tanks is provided with the maintenance shafts, enabling the access of the staff to the tank dome and technological pipelines.
ORLANDOH TankWorks also has a bead blasting facility and a paint shop. This is to be seen as one more competitive advantage of our enterprise, as the majority of producers fail to keep the corrosion preventive technology for the finished tanks.
High-quality application of anti-corrosion coating is an important stage of the shop-welded steel tanks fabrication.
After welding all metal units are meant to pass bead blasting processing, after which the coating is applied according to the project. The coated units are dried in special premises, where the temperature, humidity and dust content are strictly controlled. This ensures the long operating period for the tank and its aesthetic exterior view.
THE QUALITY STANDARD FOR THE HORIZONTAL TANKS
The welding procedures were originally worked out and tested. To ensure quality of the welding joints our factory applies a complex of measures. They were taken as the basis for the Welding Operating Conditions, which determine the requirements for welding joints and the order of technological operations as regards the types and the thicknesses of metal roll, type of the weld, steel edge preparation and other parameters.
Our Welding Operating Conditions represent the basic operation document, determining the work of welders and the quality control of the joints.
Correspondence to the Welding Operating Conditions is controlled by the General Welding Operator Service and Quality Control Department.
As a result of thorough work through and strict execution of the Welding Operating Conditions we were able to provide the highest quality of the welding joints. It is considered to be one of the main advantages of the horizontal tanks, produced by the company.
Shop Fabricated Steel Storage Tank
ORLANDOH has been fabricating high-quality steel storage tanks for over 12 years. Over the decades, we’ve pushed our industry forward by developing new technologies and investing in innovation. These practices have established us as an industry leader in the Northwest.
Our massive Fabrication and coating facility features the equipment and talented crew necessary to deliver any kind of steel storage tank. From design and fabrication to painting and site prep, we’re your one-stop-shop for turn-key carbon and stainless steel tanks.
We serve clients in both the commercial and industrial sectors and have delivered tanks for federal government contracting agencies, oil refineries, Co-Generation plants, public works, private developers, and more.
Contact Orlandoh. today to request a bid for your project or continue reading to learn more about our steel storage tank fabrication capabilities.
Fabricated Steel Storage Tanks: Our Capabilities
Orlandoh. has the ability to build a wide variety of steel storage tanks, including field-erected tanks, and shop built tanks
Steel Storage Tank Types
We can build steel storage tanks for any industry and frequently deliver tanks for these storage products:
- Chemical storage tanks
- Pulp & paper storage tanks
- Oil & gas storage tanks
- Stainless steel water storage tanks
- Stainless steel hot water storage tank
As for tank styles, some of the most common types of storage tanks that we build include:
- Fixed roof tanks
- Floating roof tanks
- Horizontal tanks
- Pressure tanks and high-pressure vessels
Finally, when it comes to capacity, we can build everything from small shop-built tanks capable of holding just a few dozen gallons all the way up to massive storage reservoirs able to hold millions of gallons of product.
Materials Used
Most of our storage tanks are built from either stainless steel or carbon steel. We use high-quality steel and can run performance and strength calculations to determine the ideal grade of steel for your storage tank.
Tank Codes
T BAILEY INC. takes pride in holding the highest standards of steel storage tank fabrication certifications. Our roster of qualifications includes:
- ASME Section VIII – Div 1
- API 650
- API 620
- API 653
- UL 142
- STI F921
- STI F941
- UL 2085
- FM
- ULC
- National Board “R”
- AWWA D100
- AWWA D102
Quality Control & Testing
We understand that storage tanks have ZERO room for error, which is why all fabrication processes are controlled by our in-house quality control department.
Our QC team conducts weld quality tests, leak tests, coating and paint tests, and more to ensure the tanks we create are robust and can stand the test of time.
The comprehensive testing conducted on your tank depends on tank style and product, but will include some of the following:
- Visual inspection during fabrication
- Radiographic Testing (RT)
- Impact Testing
- Heat treating and stress relieving
- Dye Penetrant Testing (PT)
- Ultrasonic Testing (UT)
- Adhesion Testing
- Magnetic Particle Testing (MT)
- Full blast and lining profile measuring
- Hardness Testing
- Leak Testing
- Positive Material Identification (PMI)
- Soluble Salt Testing
- Dry film thickness testing
- Lining continuity (holiday) testing
Fabrication Process
Tanks under 20 feet wide and 20 feet tall are built start-to-finish in our shop. This includes coating and painting. Once completed, these shop-built tanks are delivered to the job site.
Steel storage tanks over 20×20 feet are field erected. This means we fabricate pieces of the tank in our shop, ship them to the job site, and then construct the tank there. Once the tank is fully built, we’ll blast and coat the steel and finish the construction process with thorough testing.
Delivery & Site Preparation
Another advantage of partnering with T BAILEY INC. is that our prime location enables you to select from two shipping options, including barge, and truck. We’ll give a shipping cost assessment to help you choose the ideal delivery option for your tank.
We also have the capability to provide site preparation for the steel storage tank. This is a huge advantage for field-erected tanks, as it eliminates your need to hire a separate contractor for site work. As your general contractor, we’ll get the site prep done, allowing us to tightly control the project’s timeline and budget.
Partner With the Steel Storage Tank Experts
ORLANDOH ENGINEERING, has been operating as a storage tank fabrication manufacturer since 2010. Our decade in the industry have enabled us to acquire a talented team of experts, many of which come from a multi-generational tradition of tank building.
The superior expertise of our crews and ORLANDOH.’s dedication to innovation and state-of-the-art technology enables us to deliver the best tanks in the industry.
ORLANDOH ENGINEERING’s Steel Stack Fabrication Capabilities
Our fabrication facilities are able to scale production to create any size of steel stack. Our capabilities include:
- Services: Stack fabrication, repair, and replacement
- Materials Used: Carbon steel or stainless steel
- Length: The sky’s the limit. We have fabricated stacks over 100’ high
- Diameter: Up to 15’ shop fab complete, unlimited for field assembled.
- Wall Thickness: 3/8″ to 4”
ORLANOHS .’s professionals can fabricate any length or diameter steel stack, so if you don’t see the specs you’re looking for, don’t worry. Contact our team today and we’ll customize our processes to accommodate your steel stack needs.
We Are Certified Industrial Stack Fabricators
As part of our commitment to producing the EAT AFICANS highest quality stacks, we maintain top-level certification across all stages of our fabrication process.
- AWS D1.1 certification for welding.
- SSPC QP3 certification for painting.
- CWB Certification for the Canadian market.
These certifications demonstrate that when you partner with ORLANDOH., you are working with the experts.
AISC Painting And Blasting For Steel Stacks
A unique advantage of choosing to partner with ORLANDOH. is that our grounds hold both a fabrication facility and a state-of-the-art coatings facility.
Our large coatings building had dedicated rooms for each step in the coatings process — a surface prep room, a paint room, and a heated drying room. The rooms are arranged in a large bay where rails in the floor allow ORLANODOH’s coating experts to quickly wheel products through each stage of the coating process. This enables us to blast, coat, and dry steel stacks with maximum efficiency and turn-around time.
Our blasting and AISC painting services include:
- Washes to remove oil, salt, and other contaminants from the steel.
- Machine and manual blasting to prepare steel for coating.
- Stack metalizing (including zinc and aluminum).
- High-temperature paints and simple primers (including urethanes, epoxies, enamels, and vinyl ester coating).
